2*200G CFP2 OTU

Support DWDM transmission, wavelength conversion.
Flexible high capacity architecture based on CFP2 DCO 200G pluggable digital coherent optical modules.
The single card supports 4 channels 100G unidirectional or bidirectional service access.
The line side supports 2 channels 200G CFP2 DCO coherent optical modules access.
Support multiple client-side service access: 100G Base-SR4/CWDM4/LR4/PSM4.
Supported FEC modes on the line side: HDFEC/OFEC.
Standard MSA pluggable modules.
400G metro and long haul applications ranging up to 400km.
200G long hall applications ranging up to 1,000km.

Product

 2*200G CFP2 Muxponder for 1U DCI BOX

The 2*200G CFP2 muxponder is a 4*100G service access module designed and developed by Hooosi^® for optical fiber links. It can realize the wavelength tunable of CFP2 coherent optical module and can be converted into DWDM standard wavelength optical signal. Interconnection with DWDM multiplexer/demultiplexer to realize wavelength division multiplexing transmission. It provides a high-quality solution for solving transmission lines with insufficient fiber resources and high fiber line loss.

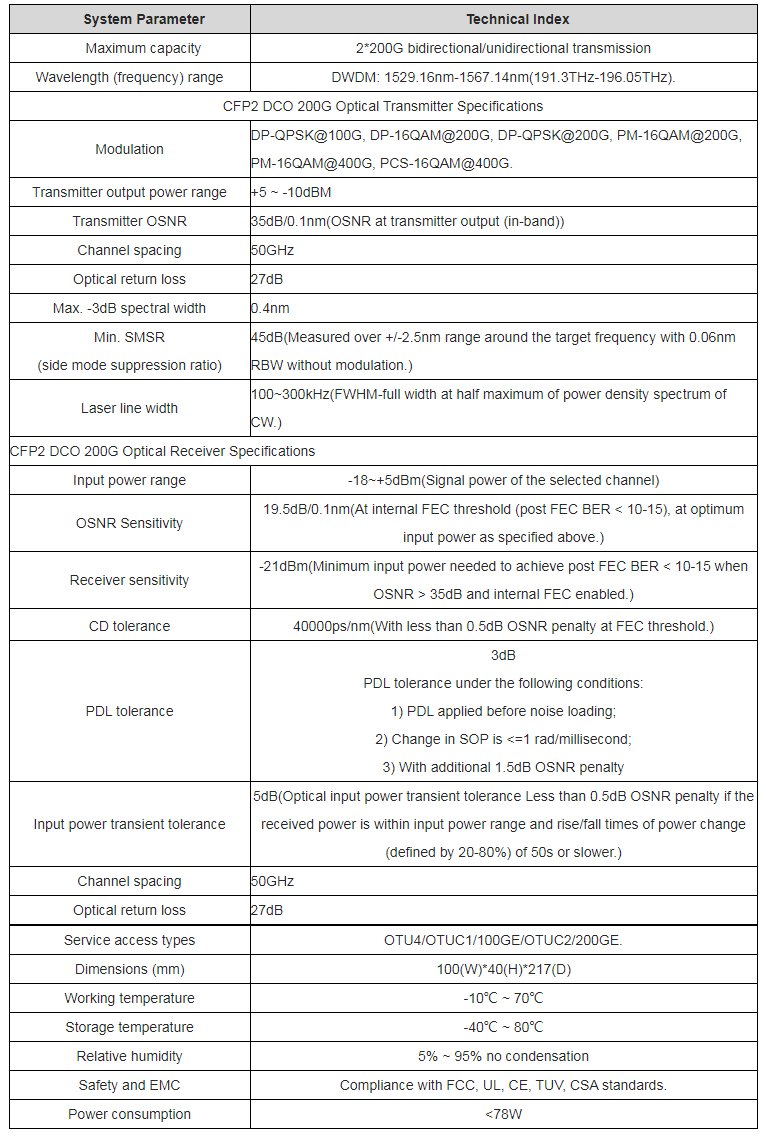

Specification
