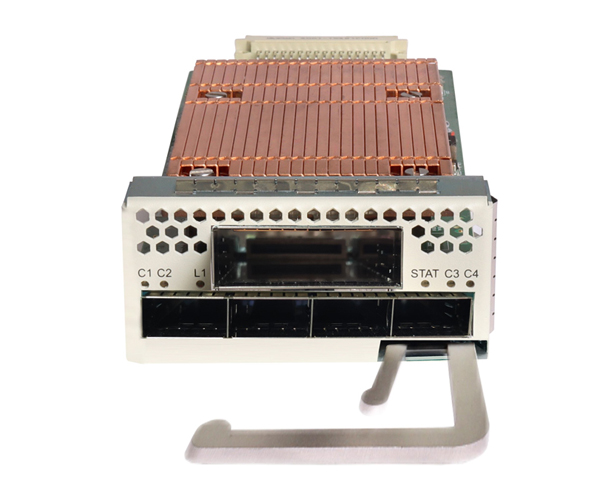

1x400G CFP2 OTU

 The single board supports 1 channel 4 * 100G to 400G coherent transmission, and 4 100G capacity coherent transmission.
The wavelength is adjustable and supports up to 64 C-bands.
With flexible coherent modulation technology: DP-16QAM, DP-8QAM, DP-QPSK.
With a variety of FEC error correction techniques: oFEC, CFEC, SCFEC, SDFEC.
Support flexible service access functions: 100GE, 100GE KR4, 100G OTU4, 100GFlexE and OTUCn.
Supports comprehensive performance monitoring and statistical functions.
Supports Ethernet RMON performance statistics, LLDP monitoring, constellation map monitoring, DM delay and PRBS detection functions, and OTN PM and SM performance statistics.
Support high-precision real-time monitoring of board-level temperature, voltage, current and power consumption.
The client side supports a variety of QSFP28 module access: 100G Base-SR4/CWDM4/LR4/PSM4.
Support unified network management platform, network management methods SNMP, CLI, Web, NetRiver (graphical interface) and yang model interface.

Product

400G TMUX board is used for fiber link 400G service access board, which can realize 4 * QSFP28 100G conversion CFP2 400G, CFP2 coherent optical module wavelength adjustable, with DWDM multiplexer / demultiplexer Wavelength division multiplexing transmission provides a high-quality solution for solving transmission lines with scarce optical fiber resources and large loss of optical fiber lines.

Specification
