100G/200G CFP2-DCO

Product

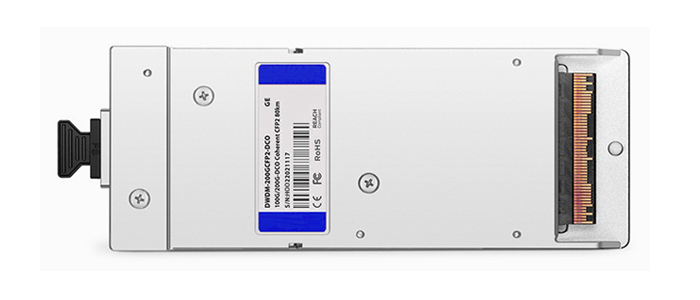

Generic Compatible 100G/200G Coherent CFP2-DCO Transceiver Module (DWDM, 50GHz, 80km, LC)

CFP2-DCO Coherent transceivers support flex-grid DWDM tuning and provide 200GBase-DCO throughput up to 80km over single-mode fiber (SMF) using a wavelength of 1529.16 to 1567.13nm via an LC connector. Digital optical monitoring (DOM) support is also present to allow access to real-time operating parameters.

It is designed for line-side trunk DWDM data center interconnect (DCI) and OTU4/OTUC1/OTUC2 metro optical transport network.

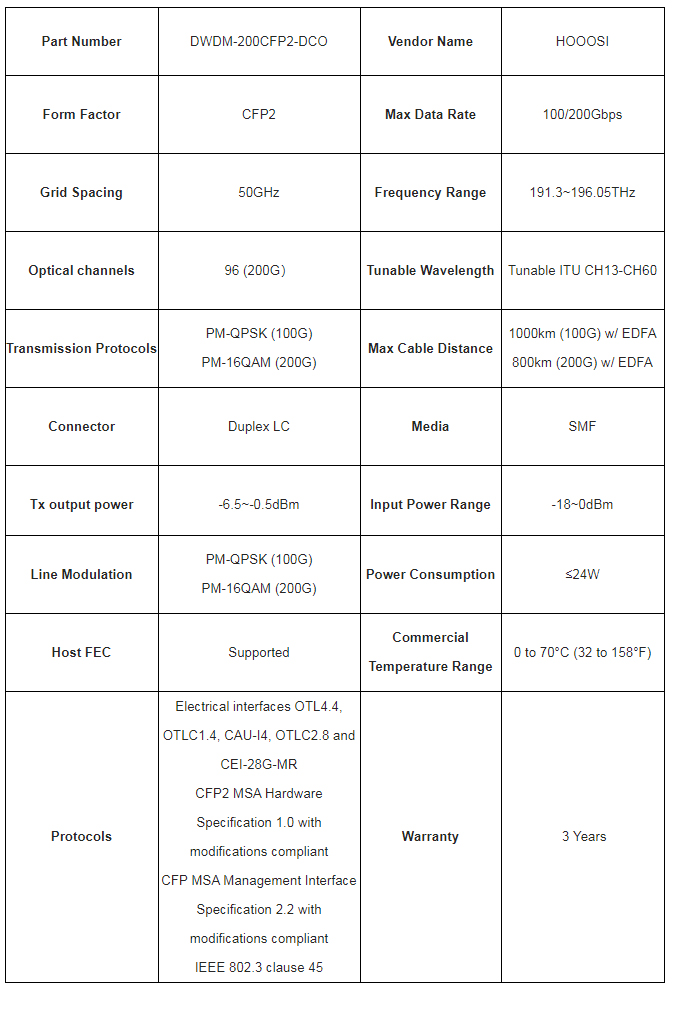

Specification
