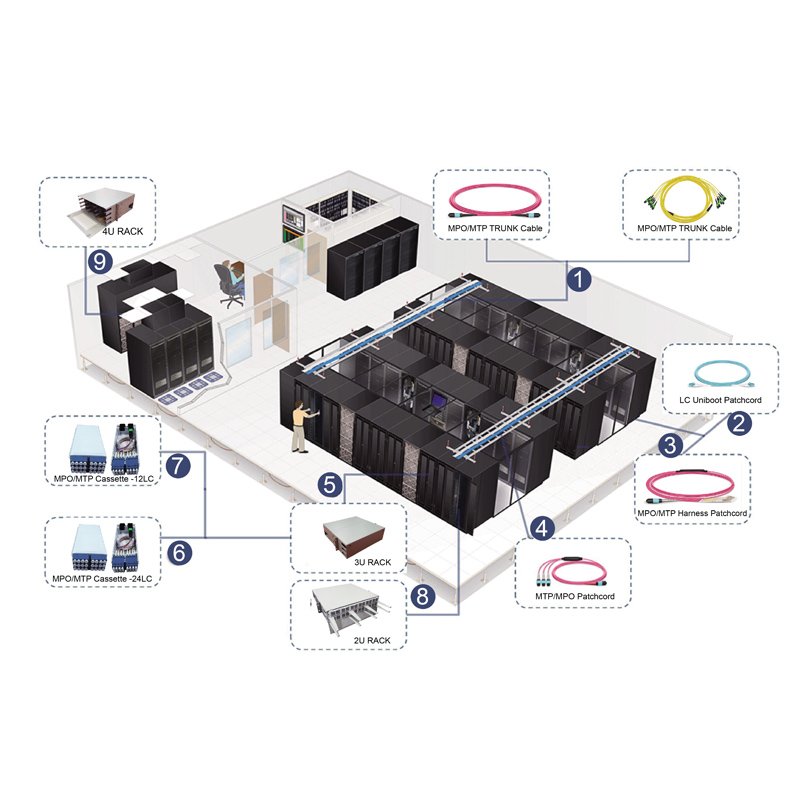

The data center room wiring system is composed of two parts: SAN network wiring system and network cabling system. In computer systems engineering, must respect the room within the wiring of unified planning and design, wiring bridge routing must be integrated into the engine room and other kinds of pipeline, bridge, in order to ensure the implementation of the system is reasonable and orderly room. Data center cabling engineering with its flexibility, scalability to achieve redundant wiring management, the entire structured cabling system should be a comprehensive solution to avoid the emergence of a single point of failure.
Is adopted: plug and play, high density, scalable, pre terminated cable system solutions, modular system management and pre- termination assembly can reduce installation time, realize the data center fiber network faster moving, add and change. the system can be used in a wide range of optical fiber products can be used in low loss optical fiber connector and bend insensitive fiber (bending radius 7.5mm), to achieve a smaller backbone optical fiber attenuation and bending performance.
Fiber jumpers are used to implement interconnection or cross-connect in structured cabling, often used in conjunction with optical modules in the data center to achieve the connectivity between devices.
Solution to 10G optical module interconnection

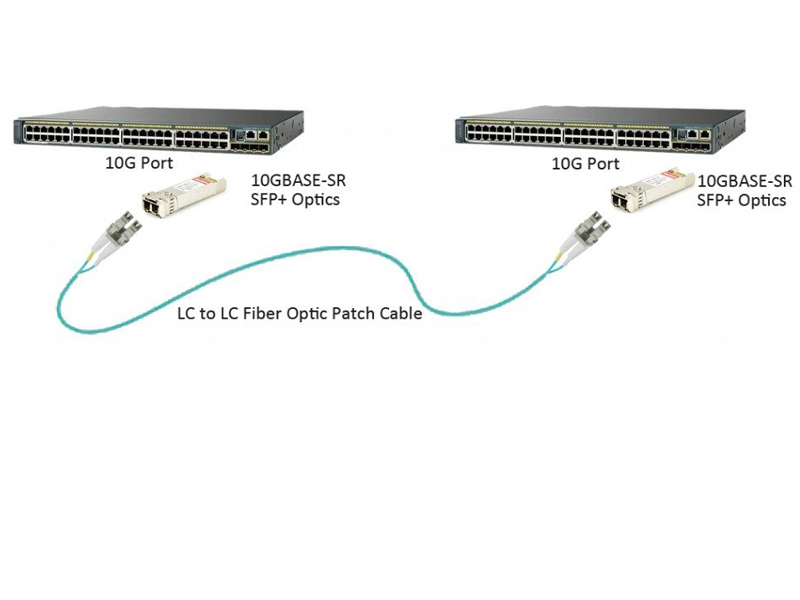

Now, most of data centers are still deployed 10G Ethernet, and the development of optical module is from the larger XFP optical module gradually developed into the current mainstream SFP + optical module. The port of SFP+ optical module is duplex LC interface, thus the SFP+ optical module can achieve interconnection via duplex LC fiber optic jumper of two switches, routers, servers or network interface cards. supplies a verity of high quality duplex LC fiber optic jumpers, optical cable are available in single-mode and multi-mode that applied to various 10G network interconnect environment.
