Network Managemet Board

Category:Network Managemet Board
Code:HOO-Network Managemet Board

Features

Adopt the high speed ARM processor, provide the powerful data processing ability, collect state information, alarm events and performance parameters of all single-board functional modules, and conduct transformation, processing and storage, and also transmit the control and management information to other each functional modules of the equipment at the same time;

Provide a Console interface, support simulation terminal operation;

Provide 2 SNMP interfaces, support graphical SNMP support based on IP modes;

Provide 3 SFP optical transceiver interfaces, support equipment in-band management, realize processing of 3 optical monitoring channels;

Network management module supports hot plug, and it also does not affect the normal working of the current service module upon the failure.



Product

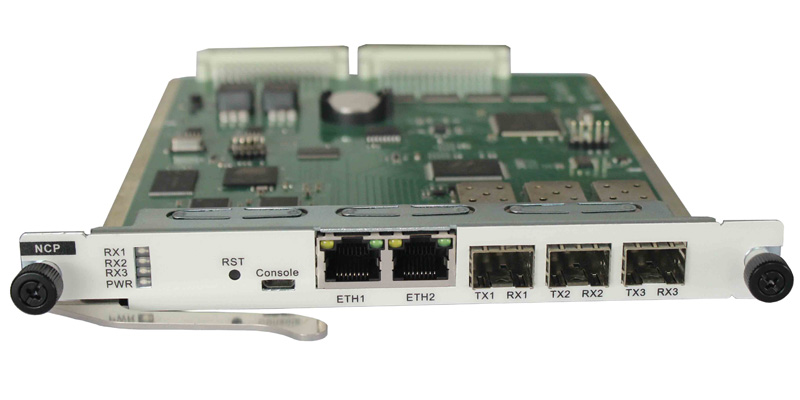

RNMS is a network management function module launched by HOOOSI. which is specially designed for OTN1000 series products; its main function is to provide interfaces for equipment and network management systems. The module, together with the OTN1000 series NMS network management system, completes each single-board management and transmission of various maintenance and management signal for each network element, realize the real-time monitoring, maintenance and management for equipment network elements and the whole synchronous equipment network, thus offering a good solution for equipment monitoring.

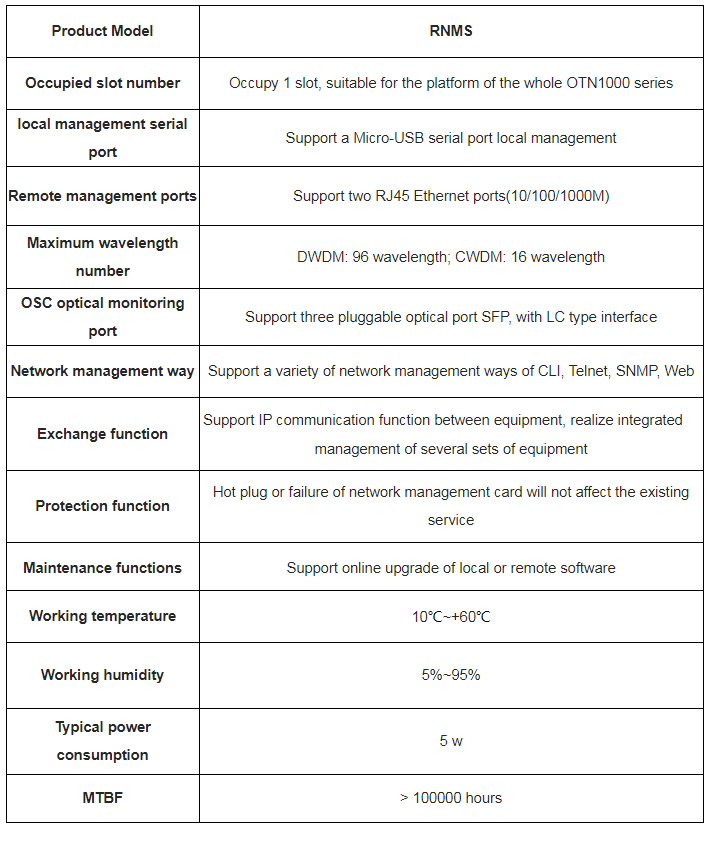

Specification

Product Model

RNMS

Occupied slot number

Occupy 1 slot, suitable for the platform of the whole OTN1000 series

local management serial port

Support a Micro-USB serial port local management

Remote management ports

Support two RJ45 Ethernet ports(10/100/1000M)

OSC optical monitoring port

Support three pluggable optical port SFP, with LC type interface

Network management way

Support a variety of network management ways of CLI, Telnet, SNMP, Web

Exchange function

Support IP communication function between equipment, realize integrated     management of several sets of equipment

Protection function

Hot plug or failure of network management card will not affect the existing service

Maintenance functions

Support online upgrade of local or remote software

Working temperature

10~+60

Working humidity

5%~95%

Typical power consumption

5 w

MTBF

> 100000 hours
