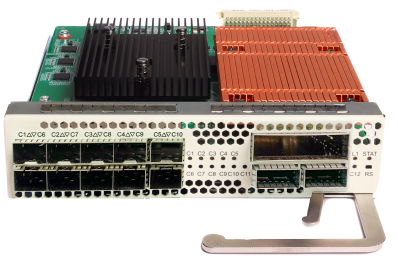

200G TMUX board

The single board supports 10 channels of 10G rate service transmission , and two 200G capacity coherent transmissions.
The wavelength is adjustable and supports up to 96 C-bands.
Supports comprehensive performance monitoring and statistical functions.
With flexible coherent modulation technology: DP-16QAM, DP-8QAM, DP-QPSK.
With a variety of FEC error correction techniques: oFEC, CFEC, SCFEC, SDFEC.
Support flexible service access functions: 100GE, 100GE KR4, 100G OTU4, 100GFlexE and OTUCn.
Support high-precision real-time monitoring of board-level temperature, voltage, current and power consumption.
The client side supports a variety of QSFP28 module access: 100G Base-SR4/CWDM4/LR4/PSM4.
Supports Ethernet RMON performance statistics, LLDP monitoring, constellation map monitoring, DM delay and PRBS detection functions, and OTN PM and SM performance statistics.
Support unified network management platform, network management methods SNMP, CLI, Web, NetRiver (graphical interface) and yang model interface.

Product

10* 10G + 100G hybrid 200G TMUX board

200G TMUX board (TMUX200GC110T-11), can realize 10 * 10G SFP+ + 1 * 100G QSFP28 to 200G CFP2 or 2 * 100G QSFP28 to 200G CFP2, CFP2 coherent optical module wavelength adjustable, with DWDM multiplexer / demultiplexer It realizes wavelength division multiplexing transmission, and provides high-quality solutions for solving transmission lines with shortage of optical fiber resources and large loss of optical fiber lines.
